A recipe manager for cooking robots — it speaks Thermomix — and a cookbook you can actually search. Recipes are indexed by preparation and total time, by ingredients you do or do not want in them, by course, by kind of preparation, by dietary profile, by season and by origin, with favourites bookmarked. Pick a few and it builds the shopping list. Pages are print-friendly and the whole book exports to a static offline copy.

A beep player small enough for a micro-controller with nothing but a buzzer on a PWM pin. It comes in two halves. The encoder, on the desktop, reads a CSV of frequency and duration or a line of beep commands and emits a C byte array — working out the tempo, or a fixed unit length, so the tune packs down as small as it can. The player, on the device, walks that array: a handful of opcodes for end-of-stream, tempo and note, and a melody costs a few dozen bytes of flash.

An LDAP object mapper for Ruby: a directory entry becomes a Ruby object and back again, with the mapping declared on the class — which branch to search, which filter, which attributes, and how each one is read and written. It is meant to be used with dry-struct, so the mapped object is a typed structure rather than a bag of strings.

A ports options and dependency configurator for FreeBSD, replacing what poudriere options -C does: that walks the dependency tree one port at a time and pops an interactive dialog for each. Optique scans the whole dependency closure in parallel — about a thousand ports in under a minute cold, and well under a second warm, from a persistent cache — presents a single interface over all of them, and writes every options file in one atomic pass at the end. It knows both the poudriere and the synth layouts.

A do-it-yourself water-leak breaker built around a Raspberry Pi. It watches household water usage and can shut the main supply through a solenoid valve, so a leak does not become water damage. Everything is driven over MQTT, so it joins an existing home-automation setup — Home Assistant, Node-RED — without locking the house into a proprietary cloud.

Parameter processing for the Sinatra framework. One declarative call expresses the whole chain a request parameter usually goes through: required or optional with a default, type checking and coercion, retrieval of the object it names, and any further conversion through a block. It sits well with dry-types and Sequel — or an LDAP object mapper such as LOM — while depending on none of them.

Provides access to Linux GPIO, SPI and I2C using the same kind of API that can be found for micro-controllers, which is what makes porting a vendor driver to Raspberry Pi user space straightforward. It goes through Linux ioctl for portability and performance (no devmem, no sysfs).

#include "bitters.h"
#include "bitters/rpi.h"
#include "bitters/gpio.h"
#include "bitters/spi.h"

int main() {
  /* Device configuration (GPIO/SPI)*/
  struct bitters_gpio_cfg reset_cfg  = { .dir       = BITTERS_GPIO_DIR_OUT,
                                         .defval    = 1,
                                         .label     = "reset",              };

  struct bitters_spi_cfg spi0_cfg    = { .mode      = BITTERS_SPI_MODE_0,
                                         .transfer  = BITTERS_SPI_TRANSFER_MSB,
                                         .word      = BITTERS_SPI_WORDSIZE(8),
                                         .speed     =  3000000,             };

  /* Get device handler */
  bitters_gpio_pin_t reset = BITTERS_GPIO_PIN_INITIALIZER(BITTERS_RPI_GPIO_CHIP,
                                                          BITTERS_RPI_P1_15);
  bitters_spi_t spi0       = BITTERS_SPI_INITIALIZER(BITTERS_RPI_SPI0, 0);

  /* Initialise library and enable devices */
  bitters_init();
  bitters_gpio_pin_enable(&reset , &reset_cfg);
  bitters_spi_enable(&spi0, &spi0_cfg);

  /* Send a reset pulse */
  bitters_gpio_pin_write(&reset, 1);
  bitters_delay_us(100);
  bitters_gpio_pin_write(&reset, 0);

  /* Perform SPI transfer */
  uint8_t data[8];
  const struct bitters_spi_transfer xfr[] = {
    { .tx = "cmd", .len = 3            },
    { .rx = data,  .len = sizeof(data) }
  };

  bitters_spi_transfer(&spi0, xfr, 2);

  return 0;
}

A driver for the DW1000, a wireless transceiver based on ultra-wideband techniques, which allows cost-effective indoor and outdoor positioning. It was written so that a network protocol built on top of it has the same consistent behaviour — and the same bugs — on every platform: Zephyr, ChibiOS, MyNewt, Crazyflie, and Linux through the bitters library. Supporting another platform means implementing a small API for delays, GPIO toggling and SPI transfers.

/* Delay */
void _dw1000_delay_usec(uint16_t us);
void _dw1000_delay_msec(uint16_t ms);

/* GPIO toggling */
typedef ..to_define.. dw1000_ioline_t;
void _dw1000_ioline_set(dw1000_ioline_t line);
void _dw1000_ioline_clear(dw1000_ioline_t line);

/* SPI communication */
typedef ..to_define.. dw1000_spi_driver_t;
void _dw1000_spi_low_speed(dw1000_spi_driver_t *spi);
void _dw1000_spi_high_speed(dw1000_spi_driver_t *spi);
void _dw1000_spi_send(dw1000_spi_driver_t *spi,
              uint8_t *hdr, size_t hdrlen, uint8_t *data, size_t datalen);
void _dw1000_spi_recv(dw1000_spi_driver_t *spi,
              uint8_t *hdr, size_t hdrlen, uint8_t *data, size_t datalen);

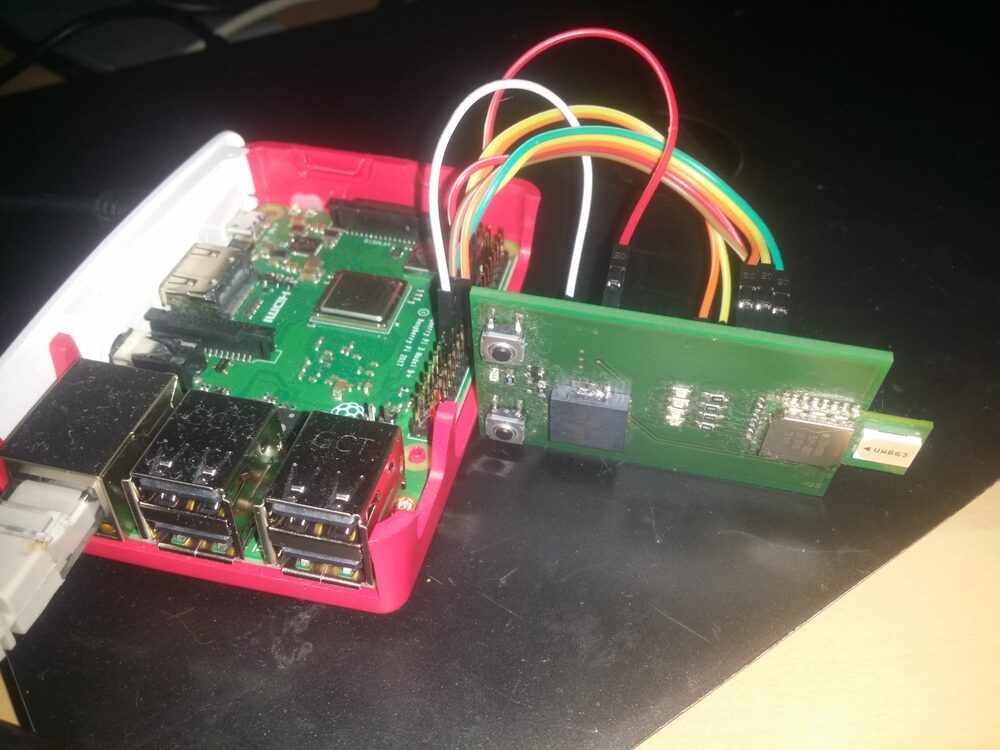

Turns a Raspberry Pi into an ultra-wideband sniffer, leveraging the bitters library and the DW1000 driver to talk to the chip. Received UWB packets are forwarded to the Ethernet interface, so they can be processed and dissected with tcpdump or wireshark. They go out under their own ethertype, so a capture on the desktop is a single filter away: tcpdump ether proto 6666.

# Sniffing UWB packets on the RPI and forwarding them to Ethernet network
#
# UWB chip is tuned for capturing on channel 5 with a 6.8Mb/s baudrate
# and preambule code 10.
#
uwb-sniffer -i eth1 -P 6666                                 \
    -c 5 -b 6800 -p 64                                      \
    --tx_pcode 10 --rx_pcode 10 --tx_plen 128 --rx_pac 8

# Analysing received packet on the desktop environment
# (it is better to use wireshark that tcpdump)
#
tcpdump ether proto 6666 and ether src aa:bb:cc:dd:ee:ff

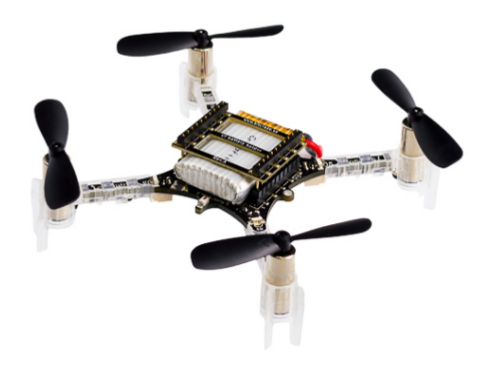

A distance measurement protocol aimed at a swarm of drones, computing drone inter-distance over UWB and scheduling the measurements among the drones, so the swarm can maintain its structure. A demonstration using Crazyflie drones was done at EWSN 2020.

Distance measurement firmware based on the SPANK protocol, targeting the DWM1001 development board but easily portable to other hardware embedding a DW1000 chip. Various information can be accessed and configured from a UART console (through the USB port), and the firmware can also be interfaced with another subsystem over I2C.

Imports GTFS files into a database for further manipulation: agencies, routes, trips, stops and stop times, fares, calendars and their exceptions, transfers, frequencies and route shapes.

This work was supported by the UrPolSens project funded by LABEX IMU (ANR-10-LABX-0088) of Université de Lyon, within the program Investissements d'Avenir (ANR-11-IDEX-0007) operated by the French National Research Agency (ANR).

Simplifies a polyline using various methods (radial distance, Douglas Peucker, Reumann Witkam, …). The polyline is simply an array of points, and the caller supplies the two distance functions — point to point, and point to line — so the library does not care what a point looks like.

# The polyline
polyline   = [ {x: 1, y: 1}, {x: 5, y: 7}, ....., {x: 8, y: 1} ]

# The two methods to compute distance
# They also deal with the point structure (Array, Hash, ....)
dist_point = ->(a,b)    {   a,b =                [a[:x],a[:y]], [b[:x],b[:y]]
                            a,b =                Vector[*a],    Vector[*b]
                            (b - a).norm
                        }
dist_line  = ->(p, a,b) { p,a,b = [p[:x],p[:y]], [a[:x],a[:y]], [b[:x],b[:y]]
                          p,a,b = Vector[*p],    Vector[*a],    Vector[*b]
                          pa, ba = p-a, b-a
                          t      = pa.dot(ba)/ba.dot(ba)
                          (pa - t * ba).norm
                        }

# Perform simplification
ts = TrackSimplifier.new(point2point: dist_point, point2line: dist_line)
ts.radial_distance(polyline, radius)    # Radial distance
ts.reumann_witkam(polyline,  threshold) # Reumann Witkam

This work was supported by the Privamov project funded by LABEX IMU (ANR-10-LABX-0088) of Université de Lyon, within the program Investissements d'Avenir (ANR-11-IDEX-0007) operated by the French National Research Agency (ANR).

DNSdoctor is intended to help solving DNS misconfigurations or inconsistencies that are usually revealed by an increase in the latency of applications. The DNS is a critical resource for every network application, so it is quite important to ensure that a zone or domain name is correctly configured in the DNS.

It is a fork of ZoneCheck occurring at version 2.0.4 (but keeping the same developer). The tool was initiated and developed by engineers working at NIC France (INRIA's service) to check the correct configuration of a zone before delegating a domain name under .fr, and was in use until October 2003. The second version was started from scratch by myself (as an AFNIC employee) at the end of 2002, emphasis was put on modularity and extensibility; this version has now taken over the responsibility of checking the delegation of domain under .fr

MW-CVSweb is an extension to MediaWiki which provides the special page Special:CVSweb. This page allows you to browse a CVS repository.

When developing an open source project, you generally welcome people's contributions; the idea here is to also encourage contributions to the website through the use of a Wiki, and this tool provides an integrated CVS browser to the Wiki platform. It is a port of the cvsweb application, to the MediaWiki platform.

An active network node is capable of dynamically loading and executing programs written in a variety of languages. These programs are carried in the payload of an active network frame. The program is executed by a receiving node in the environment specified by ANEP. Various options can be specified in the ANEP header, such as authentication, confidentiality, or integrity. (from the ANEP-draft)

An implementation of ANEP on top of IPv6 (and IPv4) has been made available, for the Linux kernel. This work was done as part of the AMARRAGE project, when working in the RESEDAS team at LORIA.

digest

An md5/md5sum like program able to perform file checking. (the standard FreeBSD md5 program is not able to perform file checking, and the Linux md5sum program is not able to generate file to the FreeBSD format).

ed2k

A program computing eDonkey link (ed2k://), or only the Hash/Id (à la md5).

xmlinfo

A program extracting information (xml encoding; DOCTYPE name, public and system ID) about an XML document.
